Overview

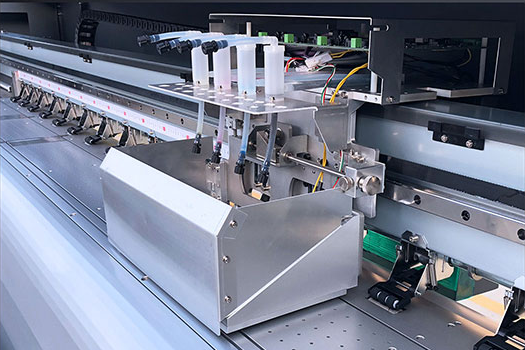

Carriage Position System: 180DPI Grating Positioning System
Carraige Lifting System: Manual Screw Type Carraige Lifting System
Printhead Protection System: Carriage Anti Collision System

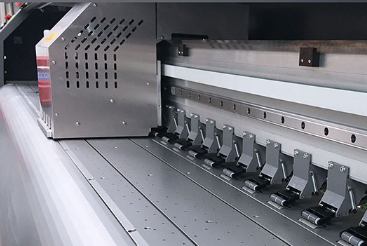

Main Girder Structure: Square Pipe Welds
Carriage Beam: 4200mm Thickened Aluminum Beam
Linear Guide Way: Taiwan Hiwin linear guide with two pcs mute sliders

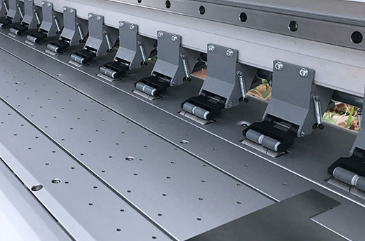

Pinch Roller: 24PCS High Precision Aluminum Made Pinch Roller
Printing Bed: 171mm Wide Printing Bed Material Suction System: Adjustable Vacuum Suction Systemm
LED Lighting System: Printing Bed Lighting System
Heating System: Rear Cover-Printing Bed-Front Cover
X Driving Mode : Belt&Pulley
Y Driving Mode: 20mm Diameter Steel Axis
XY Motor Bracket: Aluminum Machined Brackets

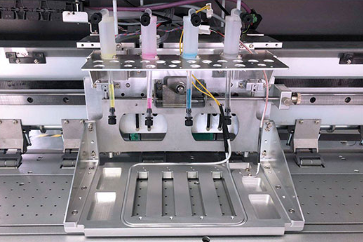

Printhead Cleaning System : Individual Ink Purging System
Subtank Heater: Subtank Heater

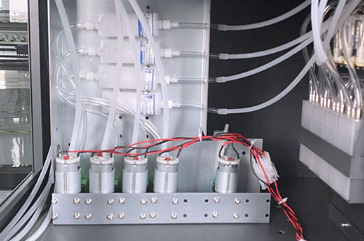

Ink Supply System: Positive pressure ink supply system

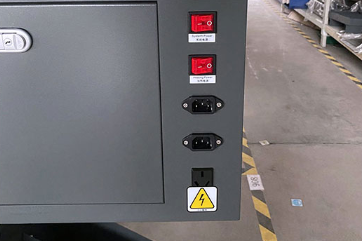

Mains Input System: Independent System Power Input And Heating Power Input
Image Drying System : Two rows of big fans /p>

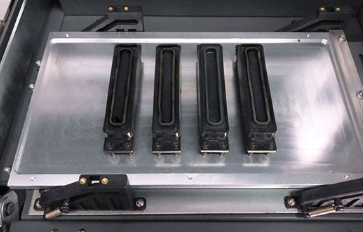

Carriage Capping System : Protect wet ink light
Roll Material Feeding System: Step-Free Feeding System Big
Roll Material Holding System(Optional) : Big Roll Material Holding System

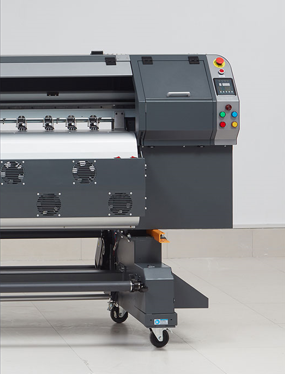

Right Side
4 inl Heating Control System: Unified Operation, Fast And Effective
Ink Supply Alarm Lamp: Flash And Buzz When Ink Supply Is Abnormal,Avoid The Problems
Start/ stop: One Click Start/Stop To Prevent Misoperation.
Home Sensor: Metal Induction, Long Life Purging Button: KCMY, Purging Seperately.
Specification
|
Brand
|
Gethray
|
|
Printer Model
|
GT-C3204
|
|
Printhead
|

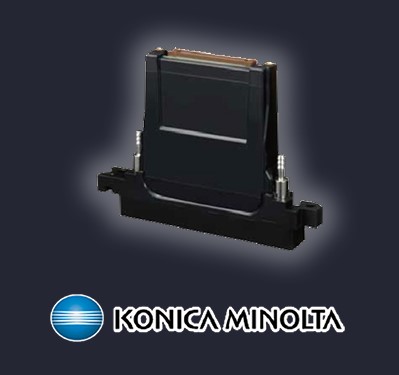

Konica 512i
|
|
Printhead Quantity
|
4
|
|
Maximum Print Width
|
3.2m
|
|
Ink & Color
|
Solvent Ink
, 4 colors (C, M, Y, K)
|
|
Printing Speed
|
2 pass(480*360): 120m2/hr
3 pass(480*720): 80m2/hr 4 pass(480*1080): 62m2/hr |
|
Print
|
Ink Type: Inktech
Ink Capacity: 1L Bluk System |
|
RIP Software
|
PhotoPrint, Maintop
|
|
Drying
|
Fans + &
IR Heater
|
|
Electricity Request
|
Power: 8500W
Requirements: AC 220V + 10%, 50/60 + 1HZ |
|
Machine Size(L*W*H)
|
4.6m * 0.97m * 1.47m
|
|
Packing Size(L*W*H)
|
4.7m * 1.15m * 1.58m
|
|
N.W. / G.W.
|
700Kg / 835Kg
|
