Overview
Carriage Position System: 180DPI Grating Positioning System
Carraige Lifting System: Manual Screw Type Carraige Lifting System
Printhead Protection System: Carriage Anti Collision System

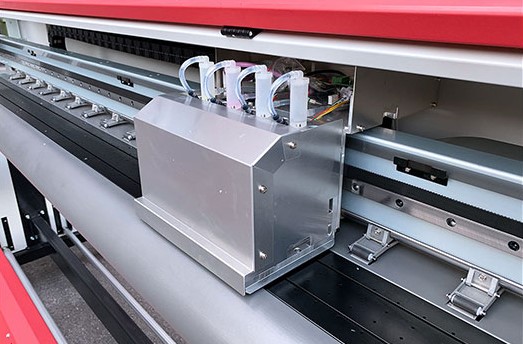

Main Girder Structure: Square Pipe Welds
Carriage Beam: 4200mm Thickened Aluminum Beam
Linear Guide Way: Taiwan Hiwin linear guide with two pcs mute sliders
Pinch Roller: 24PCS High Precision Aluminum Made Pinch Roller

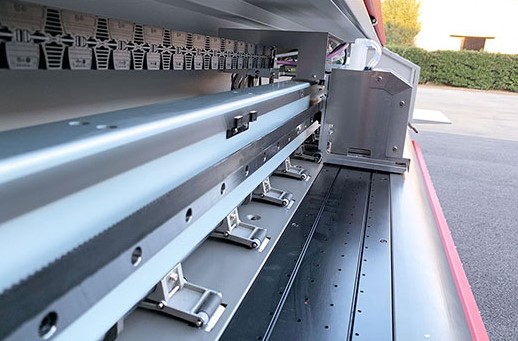

Printing Bed: 115mm Wide Printing Bed
Material Suction System: Adjustable Vacuum Suction Systemm
LED Lighting System: Printing Bed Lighting System
Heating System: Rear Cover-Printing Bed-Front Cover

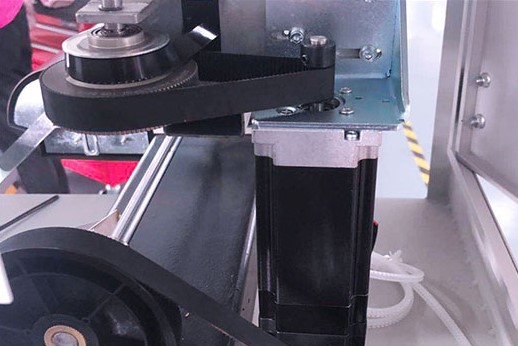

X Driving Mode : Belt&Pulley
Y Driving Mode: 20mm Diameter Steel Axis
XY Motor Bracket: Aluminum Machined Brackets

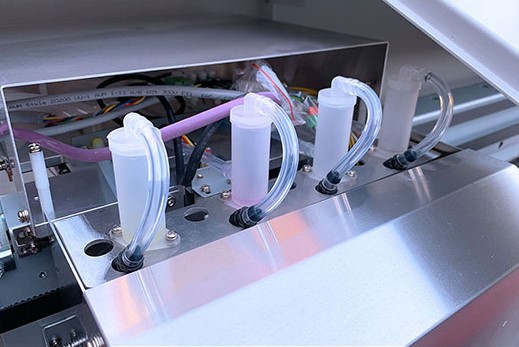

Printhead Cleaning System : Individual Ink Purging System
Subtank Heater: Subtank Heater

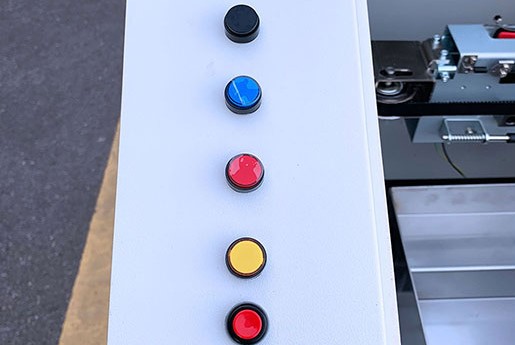

Purging Button: KCMY, Purging Seperately

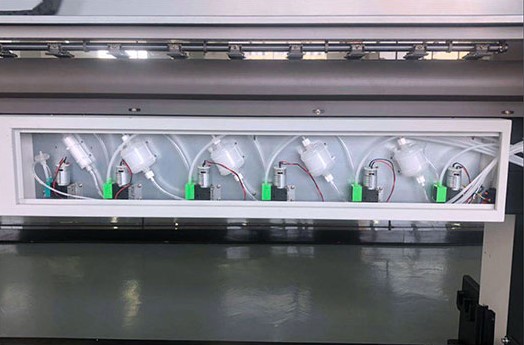

Ink Supply System: Positive pressure ink supply system

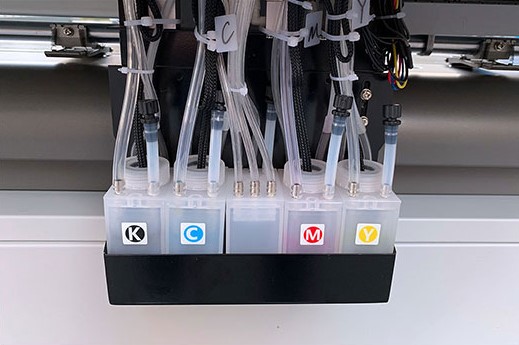

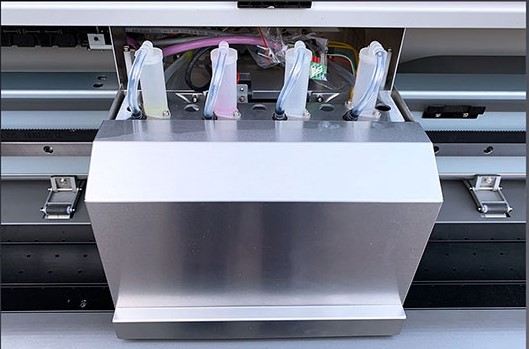

Nozzle-Knapsack: Four Color Separation Ink Cartridge

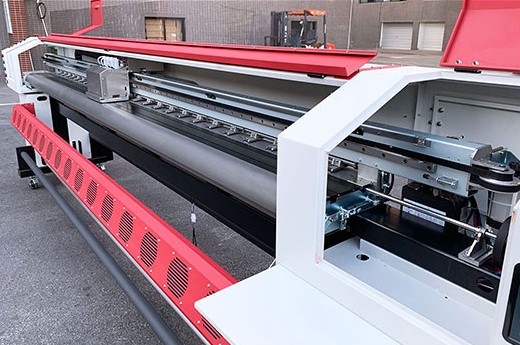

Image Drying System : One row of big fan
Carriage Capping System : Protect wet ink light

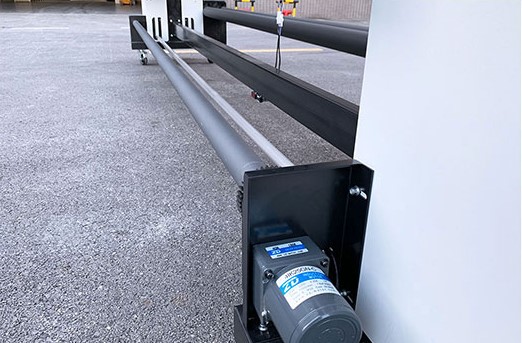

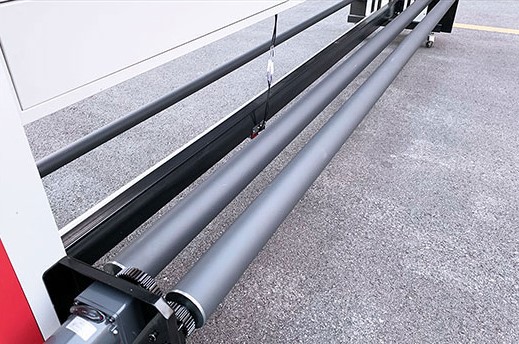

Roll Material Feeding System: Step-Free Feeding System

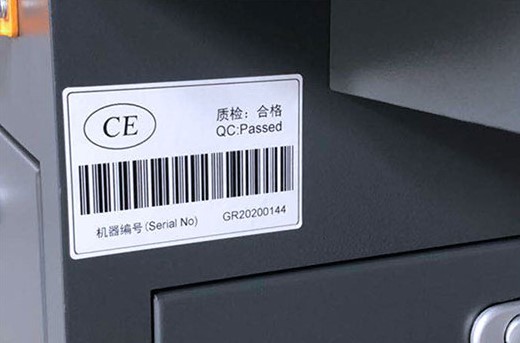

Printer Plate name:CE Paper Name Plate
Right Side
Home Sensor: Limit Switch Is Easy To Operate
4 inl Heating Control System: Unified Operation, Fast And Effective
Start/ stop: One Click Start/Stop To Prevent Misoperation.
Ink Supply Alarm Lamp: Flush And Buzz, When Ink Supply Is Abnormal , Avoid The Problems
Specification
|
Brand
|
Gethray
|
|
Model
|
Gethray-M4
|
|
Printhead
|
Konica 512
|
|
Maximum Print Width
|
3.2m
|
|
Ink & Color
|
Solvent Ink
, 4 colors (C, M, Y, K)
|
|
Printing Speed
|
2 pass(480*360): 120m2/hr
3 pass(480*540): 80m2/hr 4 pass(480*720): 62.5m2/hr |
|
Function
|
Complete, Professional and Stable
|
|
Configuration
|
Humanized and customized
|
|
Machine Size(L*W*H)
|
4.6m * 0.81m * 1.35m
|
|
Package Size(L*W*H)
|
4.7m * 0.75m * 0.85m
|
|
N.W. / G.W.
|
540Kg / 640Kg
|
